Our Product






Inspection Spreader

  • Pneumatically air operated
  • Capacity to inspect 14.00 – 20 tyre size.
  • Provided with 4 lights for clear vision.
  • Provided with tyre lift for lifting of tyre from the floor to the gripping jaws.
  • Multi angular bead hoods for firm gripping of tyre from the bread circumference.
  • Overall weight :250 Kgs.
  • Overall Dimensions: 3'x6x7
  • Air pressure required: 8 Kg/cm







Repair Spreader

  • Pneumatically air operated
  • Capacity to inspect 14.00 – 20 tyre size.
  • Provided with light for clear vision/
  • Multi angular bead hooks for firm gripping of tyre from the bead circumference.
  • Overall Dimesions: 3'x2'x3'
  • Air pressure required: 8kg/cm
  • Connected load 0.1 KW





Buffer

Model # KBF – 1420

  • Capacity: 14.00 – 20 tyre size
  • provided with one fixed & one movable chuck.
  • 20 H.P motor for buffing.
  • Pneumatically operated inbuilt tyre lift for lifting of tyre from the floor to the chuck.
  • Tread measuring device for easy measurement of circumference without using the measuring tape.
  • Shoulder trimming facility.





Builder

Model # KBD – 1420

  • Capacity: up to 14.00 – 20 tyre size.
  • Foot switch operated tyre drive control
  • Provided with one movable & one fixed chuck.
  • Pneumatic tyre lift for lifting of tyre from the floor to the desired level between the chucks.
  • Specially designed stitcher wheelds, moving on linear bearings for zero air entrappment.





Curing Chamber 1420

  • Differential pressure curing (DPC) system.
  • Alarming system against any leakage from the enevlop, tube, inflation or exhaust line.
  • Pressure recorder for chamber & tyre pressure.





Curing Chamber

Model # KCC-3-1420

  • Capacity: upto 14.00-20 tyres of 10.00 – 20.
  • Inside & outside insulated.
  • Inside fan motor.
  • Finned type heaters for fast heat dissipation.
  • Pin type door design.
  • Air ducting for streamlined air flow & equal temperature distribution.





Curing Chamber 1120

Model # KCC-3-1120

  • Capacity: Upto 11.00-20 tyre size 3 tyres of 10.00-20.
  • Inside & outside insulated.
  • Outside fan motor
  • Finned type heaters for fast heat dissipation.
  • Pin type door design.
  • Fitted with thermometer, overheat safety controller with digital temperature display.





Rasper

Model # KRS – 1420

  • Capacity: 14.00-20 tyre size.
  • 10 H.P motor for buffing.
  • Pneumatically operated overhead tyre lift for lifting of tyre from the floor to the chuck.
  • Tread measuring device for easy measurement of circumference without using the measuring tape.
  • Shoulder trimming facility.
  • Forwarded & reverse buffing facility.
  • Device for measurement of shoulder trimming width.





Mini Rasper

Model # KMRS -1120

  • Capacity: 11 .00 – 20 tyre size.
  • 7.5 H.P motor for buffing.
  • Shoulder trimming facility provided.
  • Forward & reverse buffing facility provided.
  • Pneumatic brake for rotary table & rasp atand.





Mobile Tyre Lift

Model # KTL

  • Movable lift for lifting of rimmed tyres.
  • Pneumatically operated frame.
  • Fitted with castor wheels.
  • Capacity: upto 14.00-20 tyre size

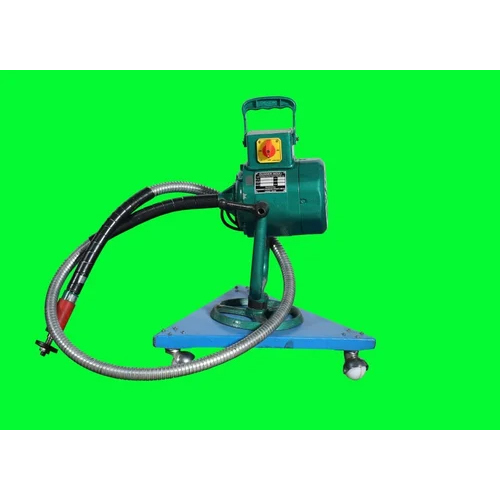

Skiving Motor

Model # KFS

  • An efficient equipment for doing the skiving work.
  • Driven by 3 H.P/2800 rpm motor.
  • Mounted on a trolley for easy movement.
  • Fully balanced rotor.





Warming Tray

Model # KWT

  • An excellent device for heating of repair gum to be used for filling.
  • Provided with a thermostat for control of temperature.





Curing Rims

Curring Rims

  • Hydraulically pressed & light weight.
  • Provided with strong locks.
  • Sizes available:  22.5”x9.75”, 22.5”x 8.25”, 20” x 7.5”, 20” x 7”, 16”x6”, 15”x6”, 15”x 5-1/2, 14”x 5 -1 /2”, 13” x 5”, 12”x 4”.





Envelop Flanges

Envelop Flanges

  • Hydraulically prssed & light weight.
  • Sizes available: 22.5”, 20”, 16”, 14”, 13”, 12”
